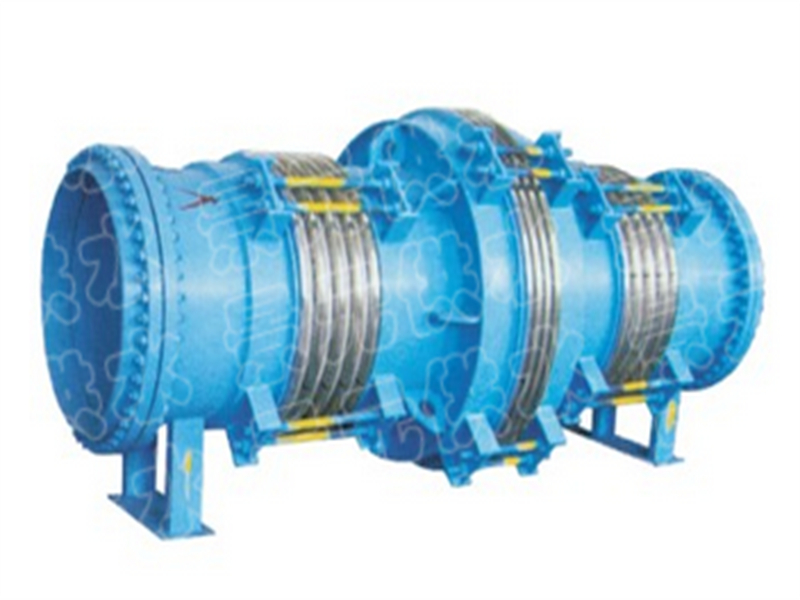

直管压力平衡补偿器称直管压力平衡式波纹膨胀节，主要用于吸收轴向与横向组合位移并能平衡波纹管的压力推力。该膨胀节为波纹管式结构，内由压力平衡波纹管和补偿波纹管组成，通过压力平衡波纹管平衡波纹补偿器压力，解除补偿器以及管道的自身推力。直管压力平衡补偿器产品特点该膨胀节的两端各有一个工作波纹管，中间有一个平衡波纹管，膨胀节通过受力构件（大拉杆或舌管）来承受内压推力，因此管系只需中间固定支架。此类膨胀节只能吸收轴向位移。直管压力平衡补偿器用途其从根本上解决了盲板力对固定支架的推力问题，从而简化了固定支架的设计和施工，降低了工程造价。压力平衡型膨胀节能补偿管道系统中的轴向位移，内压推力自身平衡，本产品应用于不宜设置固定支架的高物位置管线中。BZYP型直管压力平衡补偿器主要数据公称通径DNmm总波数nn1/2n2n1大管波数n2小管波数压力等级Mpa径向外型最大尺寸mm压力对应的产品长度Lmm0.250.6接管J型法兰F型轴向补偿量mm轴向刚度N/mm0.25Mpa0.6Mpa0.25Mpa0.6Mpa0.25Mpa0.6Mpa1100124/8102/140467/3880201619862100244021242464186/12154/936100/29902450275024742774248/16205/702124/194029003110292431341200124/8110/124660/5062217021302100244021242464186/12165/83189/33752450275024272774248/16220/623120/253129003110292431341300124/8116/123768/5475231622662100245021242474186/12174/824102/36502450284024742864248/16232/618136/273629003230292432541400124/8115/129568/5722243023802100246021242484186/12172/863102/38152450285024742874248/16230/647136/286129003240292432641500124/8105/177246/8595257625302100246023242484186/12158/118269/57302450285027242874248/16211/88692/42982900324032641600124/8103/185272/4878274026882300266023242684186/12154/1235108/32522700306027243084248/1644/2439345034741700124/8111/188171/6363292026862300266023242684186/12166/1254106/42422700306027243084248/16142/3181345034741800124/8104/216870/6150304029682300266023242684186/12156/1445105/41002700306027243084248/16140/3075345034741900124/8108/219090/4605318031282300266023242684186/12160/1460135/30702700306027243084248/16180/2302345034742000124/8121/202279/7088334032882450266024272684186/12182/1348119/47252950306029743084248/16158/354434503474
