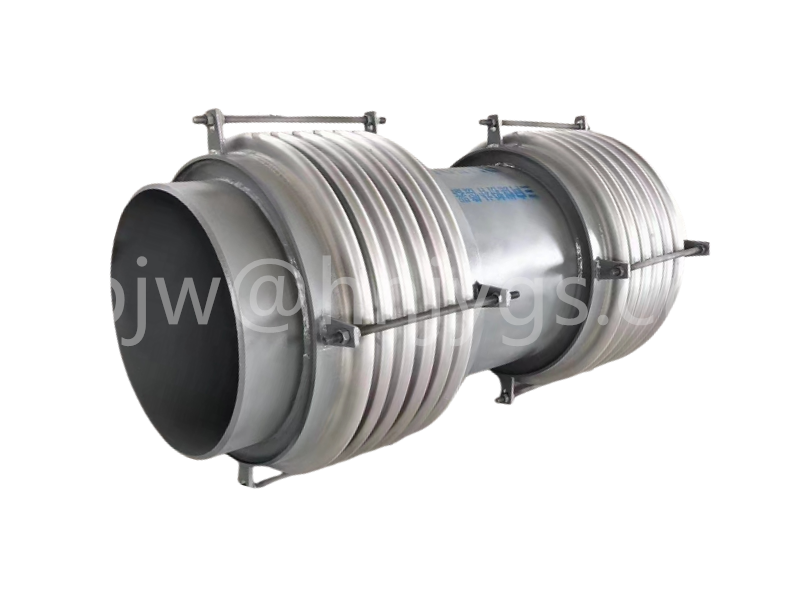

横向小拉杆波纹管膨胀节是由中间管连接的两个几何参数和波数相同的波纹管及小拉杆、端板组成的挠性部件，又称煤粉三向型波纹补偿器。宁泰牌小拉杆横向波纹补偿器由两段波纹管、中间接管及带有限螺母的小拉杆等零件组成，它在吸收管系任意平面内的横向位移，同时吸收轴向位移。小拉杆不能承受内压推力，压力推力必须由管道固定支架承受。设计温度-20℃~+400℃安装注意事项1.用户使用时若需要小拉杆，在安装后务必将螺母松开并离天耳板（或撑板）一段距离（数值由由向补偿量确定）。2.若实际补偿量大于样本上的规定值（寿命≤1000次），产品在安装后必须拆除小拉杆。小拉杆横向波纹补偿器公称通径DN压力0.6Mpa压力1.0Mpa压力1.6Mpa有效面积cm2焊接端管mm总长1mm轴向位移/轴向刚度横向位移/横向刚度轴向位移/轴向刚度横向位移/横向刚度轴向位移/轴向刚度横向位移/横向刚度10032/21096/8.028/25286/9626/30278/12154108×41000200/2.0180/25162/3.11500306/0.8927/11284/1.32000411/0.50370/06333/0.75250012533/17083/1831/20478/21629/24575/25.9180133×41000115/6.8109/82103/9.81500198/3.5188/4.2178/5.02000269/1.8255/2.2242/2.6250015032/29065/2130/34861/25227/41758/30.2299159×451000136/54129/65122/7.81500107/2.4197/28186/3.52000279/1.4265/168251/2.1250020048/32672/4743/39168/56.440/46965/70.5531219×61000160/11152/13.2144/16.51500250/5.0237/60225/7.52000341/2.8324/3.4291/4.1250025046/400127/2043/480114/2538/576108/30774273×81500199/9.0179/108170/13.52000271/5.0257/60231/7.52500343/3.2325/38293/4.63000公称通径DN压力0.6Mpa压力1.0Mpa压力1.6Mpa有效面积cm2焊接端管mm总长1mm轴向位移/轴向刚度横向位移/横向刚度轴向位移/轴向刚度横向位移/横向刚度轴向位移/轴向刚度横向位移/横向刚度30059/336134/2556/403127/3050/483121/361069325×81500213/11202/13.2192/15.82000292/6.0277/7.2263/8.62500372/3.8353/4.6335/5.4300035058/336107/4055/402102/4452/44296/481263377×81500178/16167/18161/222000250/8.5237/10226/122500322/5.3306/69290/9.6300040057/41592/5854/4887/6351/49283/691612426×81500154/23142/25135/272000215/12204/13196/152500278/7.7264/9250/11300045055/41581/8052/46577/8849/48473/961995478×81500135/32128/35122/382000189/17180/19171/212500243/11230/12218/13300050090/74636/24172/89532/26058/98429/2812625529×10140068/8962/9656/1041700102/4292/4583/492000126/28113/30102/322200166/18149/19134/212500192/12178/13160/14280060094/82042/20885/88638/22475/94834/2423590630×10150071/10264/11058/1181800106/4795/5186/552200135/30121/32111/352500168/21156/23141/252800199/14183/15168/173200注：大于DN600的均可按用户要求制造。
