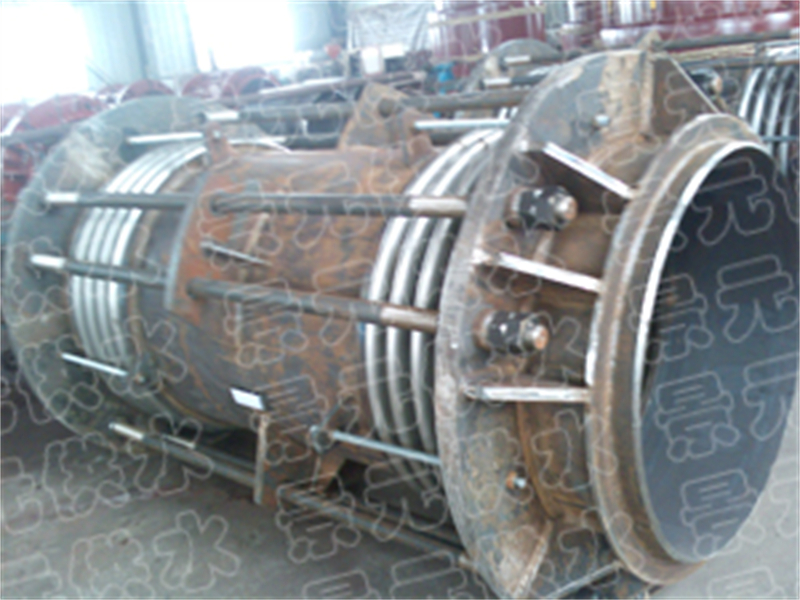

JDH横向大拉杆波纹补偿器,大拉杆横向波纹补偿器可以补偿弯曲管段的横向位移和量值不大的角位移，通常不用来补偿角位移。大拉杆横向波纹补偿器由接管、二个波纹管以及大拉杆等零件构成。大拉杆横向波纹补偿器能吸收管系任意平面内的横向位移。位移球面螺母绕球面垫圈转动，同时拉杆还具有承受内压推力能力。横向大拉杆波纹管膨胀节是由中间管连接的两个几何参数和波数相同的波纹管及拉杆、端板组成的挠性部件。主要用于补偿单平面或多平面弯曲管段的横向位移。适用于"L"型和"Ｚ"型管系。由于拉杆能承受压力推力和其他附加外力的作用，膨胀节自身吸收内压推力，不会对管道产生外力，因此膨胀节两端的管道可使用中间固定支架或导向支架，降低施工成本，提高施工效率。我厂生产的横向大拉杆波纹膨胀节采用EJMA标准优化设计，具有柔性好、耐腐蚀、耐高温、耐磨损和疲劳寿命长的特点，可吸收管道的轴向、横向及角向位移。已为国内外多家大型水泥厂、钢厂、电厂、化工厂等重点行业企业配套，产品质量稳定可靠。产品名称：横向大拉杆波纹管膨胀节公称通径：DN100-DN3000（mm）设计压力：0.1～2.5（Mpa）设计温度：-20℃～950℃连接方式：法兰/焊接执行标准：GB/T12777-2008材质：SUS304,SUS321,SUS316L大拉杆横向波纹补偿器主要数据公称通径DNmm波数压力等级Mpa横向补偿量N/mm最大外径尺寸mm产品长度Lengthmm1200150020002500300035001004+40.25177/2.2243/1.2254/0.6465/0.33100.6177/2.2243/1.2341/0.6447/0.33101.0163/2.2243/1.2325/0.6427/0.33101.691/4127/2187/1247/0.63102.594/8132/5194/2256/13101254+40.25181/2.8251/1.5369/0.7487/0.43600.6172/2.8239/1.5351/0.7463/0.43601.0161/2.8224/1.5330/0.7435/0.43601.699/11140/6209/3277/23602.594/11113/6197/3262/23601504+40.25199/6278/3.2410/1.6542/1.04100.6186/6259/3.2382/1.6506/1.04101.0122/10170/6251/3332/24101.6108/12153/6230/3307/24102.582/22117/12176/5324/34102004+40.25155/9.4220/4.9327/2.25435/1.44800.6138/9.4196/4.9291/2.25388/1.04801.0101/20143/11213/5283/34801.675/42108/21164/10220/64802.559/6986/35130/16176/94802504+40.25164/10.2239/5.1367/2.4494/1.55800.6128/21188/10287/5387/35801.0109/35159/18243/8328/55801.676/68116/33182/14249/85802.564/12298/58154/25210/145803004+40.25144/17.6174/8.4287/3.7379/26600.694/50144/24228/0313/66601.0127/39202/17277/10352/66601.6169/28169/28234/15299/106602.591/113148/47215/26262/16660注：如需法兰连接按照GB/T9115.1-2000标准供货，可根据用户要求或其他标准供货。公称通径DNmm波数压力等级Mpa横向补偿量N/mm最大外径尺寸mm产品长度mm1200150020002500300035003504+40.25100/26157/14254/5352/37500.683/73130/34210/14292/87501.0117/54190/23263/13337/87501.695/96160/38225/20291/137502.581/158135/63190/34246/217504004+40.25146/16238/7330/4423/27800.6122/45199/19276/10354/77801.0109/74177/31246/17315/117801.685/130144/52202/28262/177802.5112/88157/47203/29250/207804504+40.25134/20216/8299/5383/38700.6129/40208/17289/9369/68701.0109/68176/29244/16312/108701.6115/9162/48210/29258/208702.586/198122/105158/65193/448705004+40.25123/26199/11277/6355/49200.6119/53193/22267/12342/89201.099/90160/38222/21285/139201.6101/12743/66186/41229/279202.576/284107/149140/91172/629206004+40.25111/54188/22265/12342/910100.6108/108181/43256/23331/1410101.083/220319/88197/47254/2910101.698/182143/93187/56232/3810102.582/307119/157156/95193/6310107004+40.2598/82166/32236/17305/1111400.6161/64228/34295/21263/1411401.0117/132165/70214/43264/2911401.681/287199/144157/86196/5711408004+40.25146/45208/24271/15334/1012400.6141/93201/49262/30323/2012401.0102/182146/95190/59235/4012401.669/402103/200137/119170/7912409004+40.25184/49249/28314/1813700.6179/97242/56305/3713701.0139/171188/99237/6413701.6103/369139/213176/139137010004+40.25194/52266/30340/1915000.6194/104266/59340/3815001.0148/185204/106260/6815001.6108/416148/237189/1531500
