Non-metallic fabric expansion joint metal bellows expansion joint customized by China supplier

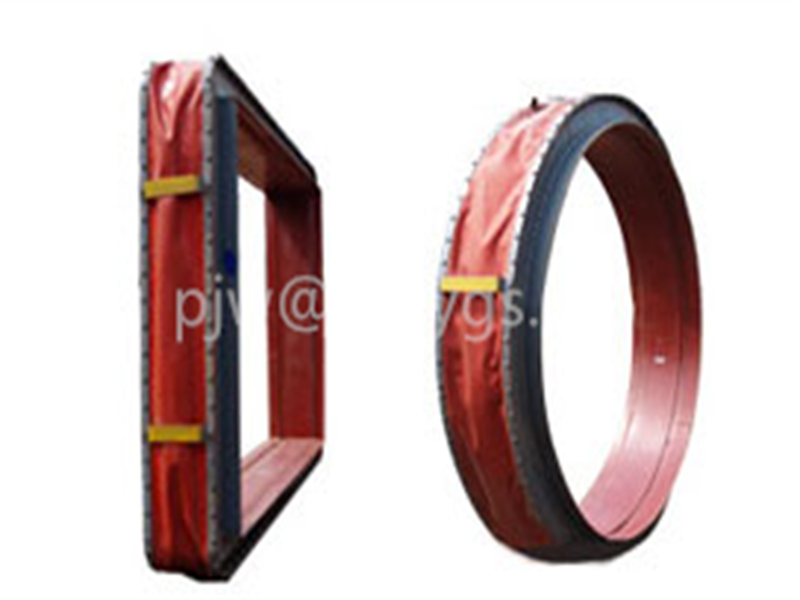

Rectangular non-metallic compensators, circular non-metallic compensators, are composed of flexible compensators, flanges or pipes,
thermal insulation materials and bolt rods, etc.
Large axial, angular, and lateral displacements can be provided in a smaller size range.
The characteristic is that there is no reverse thrust, and the main material is glass fiber fabric and its coated products, which can be transmitted weakly.
The use of non-metallic compensators simplifies the design, avoids the use of large brackets, and saves a lot of material and labor.
Then it plays a role in sound absorption and shock absorption (fiber fabric and insulation cotton itself has the effect of sound absorption and shock absorption,
which can effectively reduce boilers,
noise and vibration of systems such as fans).
At the same time, it has excellent high temperature resistance, corrosion resistance and sealing performance, and is coated with polymer materials such as silicone and fluorine.
It has excellent high temperature resistance, corrosion resistance and sealing performance. Easy to install and maintain.
Material: Silicone rubber laminated glass cloth, fluorine rubber coated glass cloth, PTFE laminated glass cloth,
EPDM coated glass cloth, butadiene rubber coated glass cloth, PTFE film and other single or multi-layer composite materials,
Ceramic fiber fireproof cloth, aluminum silicate cotton, stainless steel wire fiber cloth, glass fiber cloth, etc.
• Compensate for Thermal Expansion: Non-metallic compensators (non-metallic expansion joints) can provide large multi-dimensional directional compensation in a smaller size range.
• Compensate for installation errors: Since systematic errors are inevitable in pipeline connections, non-metallic compensators
(non-metallic expansion joints) can better eliminate installation errors.
• Noise and vibration isolation: Fiber fabrics and insulation cotton have the functions of sound absorption and vibration isolation,
which can effectively reduce the noise and vibration of boilers, fans and other systems.
• No thrust reverse: Since the main material is a fibrous fabric, it is not capable of transmission. The design can be simplified with non-metallic expansion joints.
