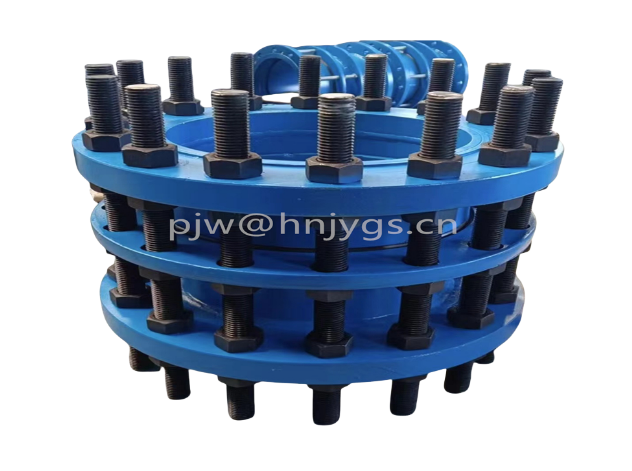

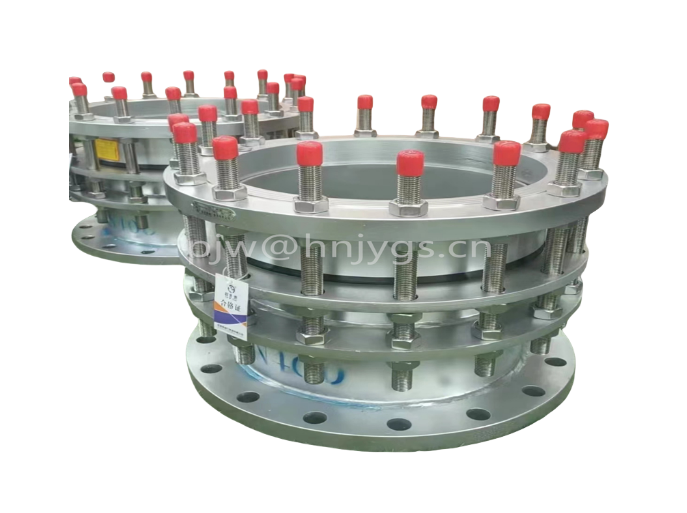

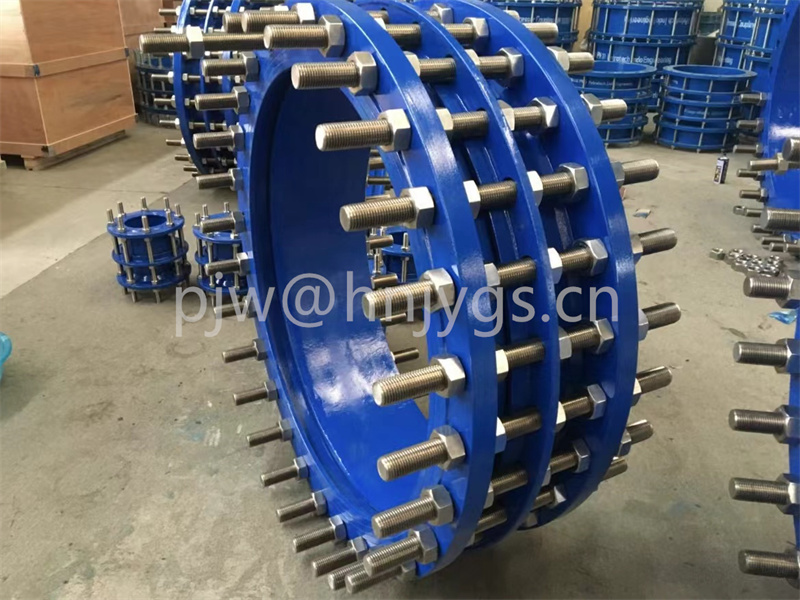

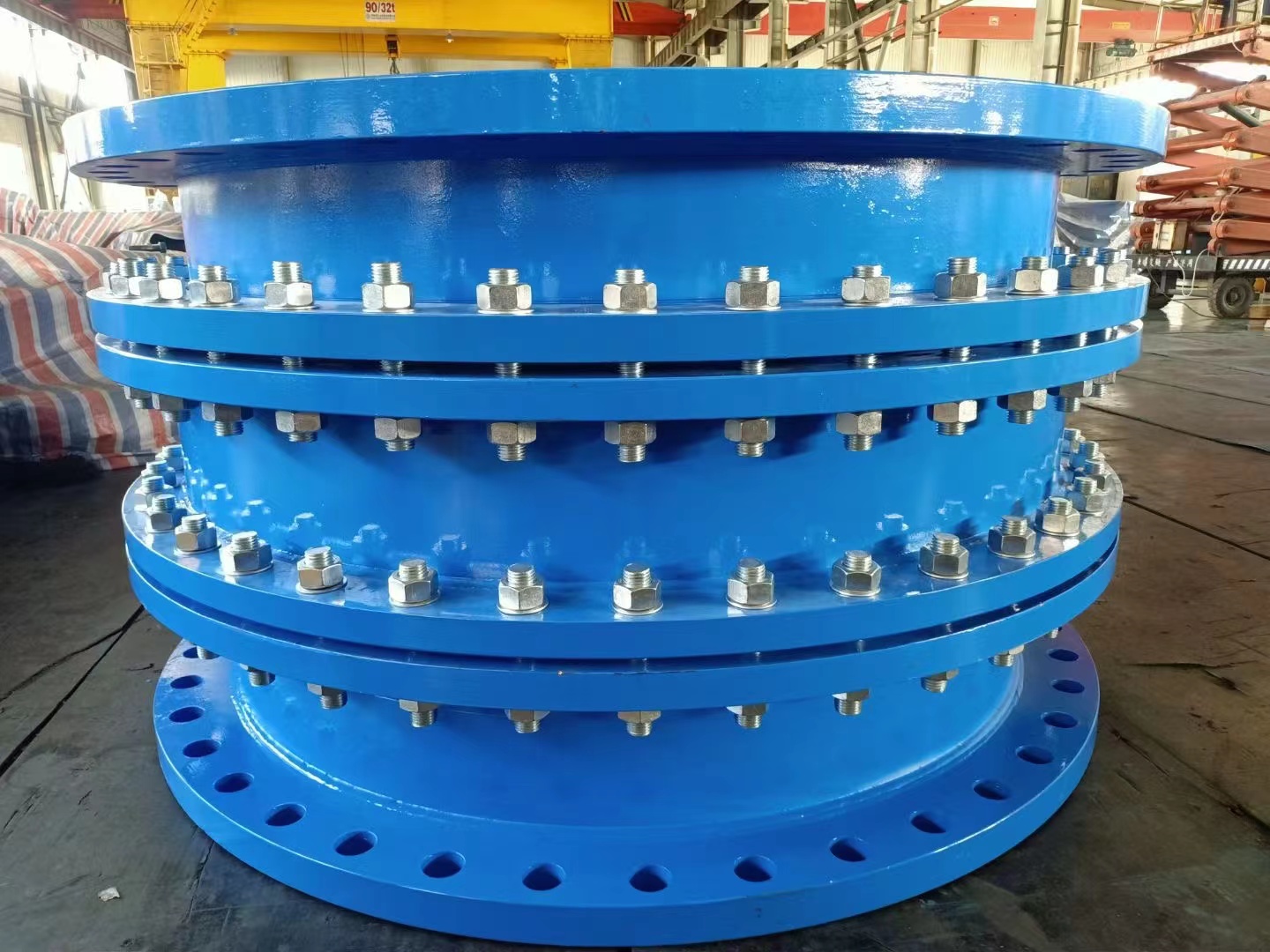

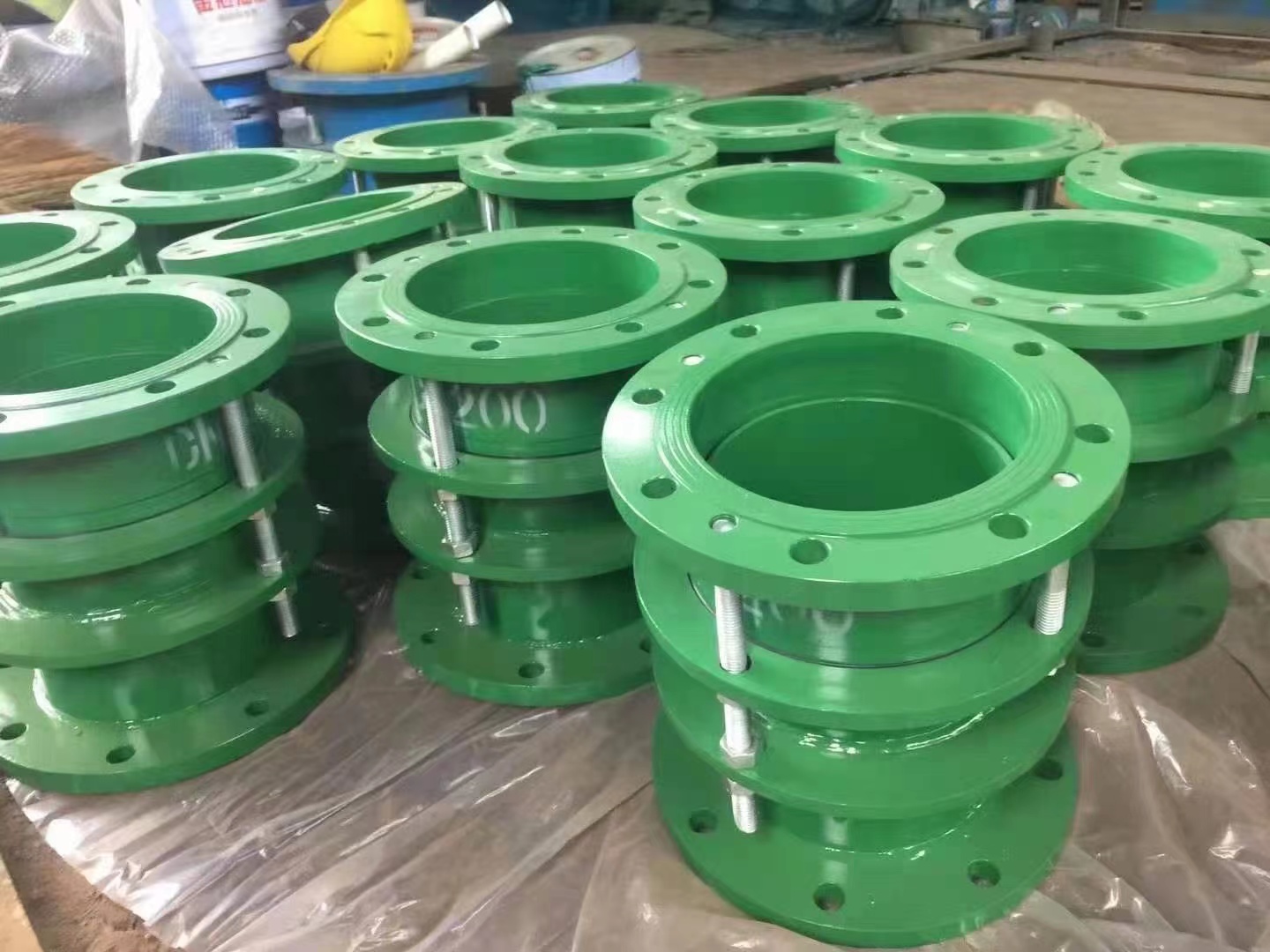

Single flange removal joint , Double flange disassembly joint , It is composed of main components such as body,
sealing ring, gland, extension and shortening tube.The product is suitable for pipes connected with flanges on both sides,
and the installation length of both ends of the product and the flange is adjusted during installation.
Diagonally tighten the gland bolt evenly so that it becomes a whole and has a certain amount of displacement,
It is convenient for installation and maintenance, and can be adjusted according to the size of the site.
The counteraxial thrust can be transmitted to the entire pipe during operation.
It is rigidly connected and can transmit axial force to protect valves, pumps, and other equipment.
Scope of application:
Double flange power transmission joint is suitable for conveying seawater, fresh water, hot and cold water,
drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, refined oil, air, gas, steam and granular
powder with a temperature of no more than 250 degrees.
Brief Instructions for Installation:
The double flange force transmission joint is suitable for the pipeline that is connected with the flange on both sides,
adjust the installation length of the product at both ends and the flange during installation, tighten the compression
bolt diagonally and evenly in turn, make it a whole, and have a certain amount of displacement, which is convenient
for installation and maintenance, and adjusts according to the size of the site When working, the axial thrust can
be transmitted to the entire pipeline.
