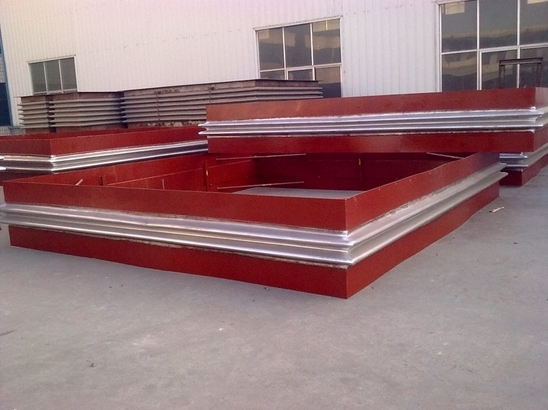

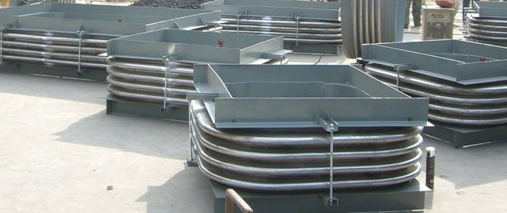

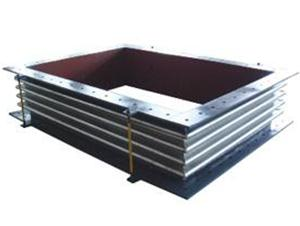

Rectangular corrugated expansion joints

Rectangular metal bellows expansion joints, rectangular corrugated expansion joints, circular metal corrugated expansion joints,

Flue gas, pulverized coal, and pipeline expansion joints belong to a kind of compensation element.

Using the effective expansion and contraction deformation of the bellows,

To absorb dimensional changes in pipelines, conduits, containers, etc. due to thermal expansion and contraction, etc.,

or compensate for axial, lateral, and angular displacements of pipelines, conduits, vessels, etc.

It can also be used for noise and vibration reduction. It is widely used in modern industry.

Rectangular metal bellows expansion joint, according to customer requirements to produce different materials,

Rectangular metal bellows expansion joints with different corrugated forms and structural forms.

It has the characteristics of good flexibility, corrosion resistance, high temperature resistance, and long fatigue life.

The products are mainly used in gas turbine exhaust systems,

Turbine or condenser connections, water heater exhaust ports,

Sealing of pressure ventilation fans, exhaust gas discharge pipes, AC heat exchangers,

Precipitators and other steam and large piping systems.

Pipes and fan outlets that convey gas or dusty gases are used to absorb displacement or shock absorption.
