EPDM Threaded Rubber Expansion Joint

EPDM Threaded Rubber Expansion Joint,Thread rubber expansion joint, bearing rubber expansion joint,

THREADED RUBB.EXP.JNT. - 3/4" ,11/2",  2" , EPDM , NR, NBR,IIR,CR, Rubber material

Watch the video

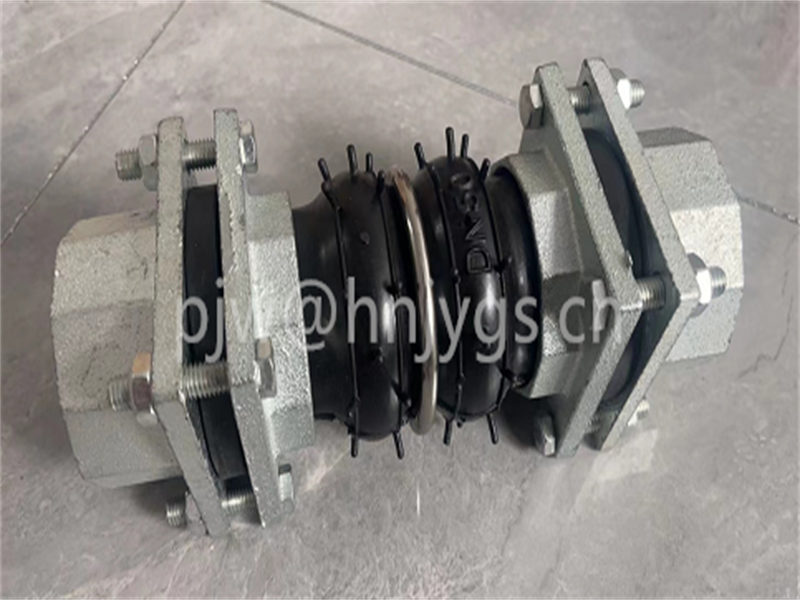

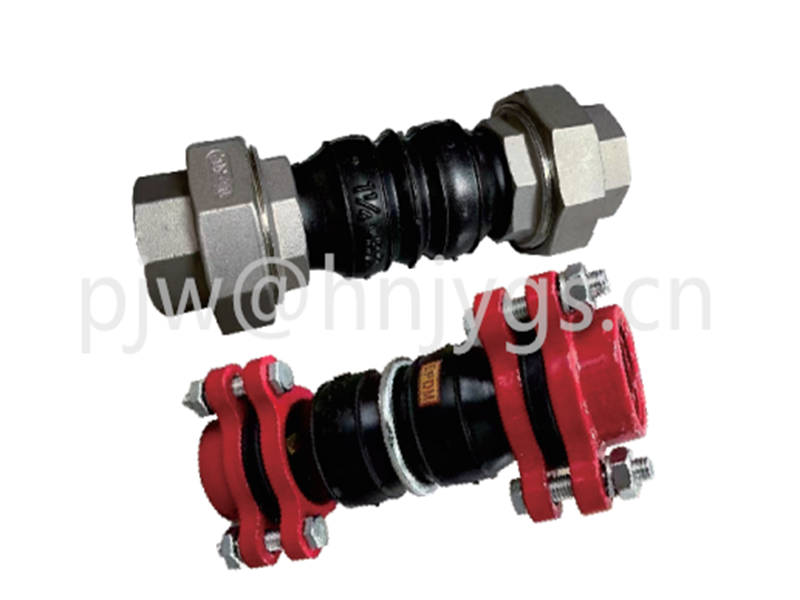

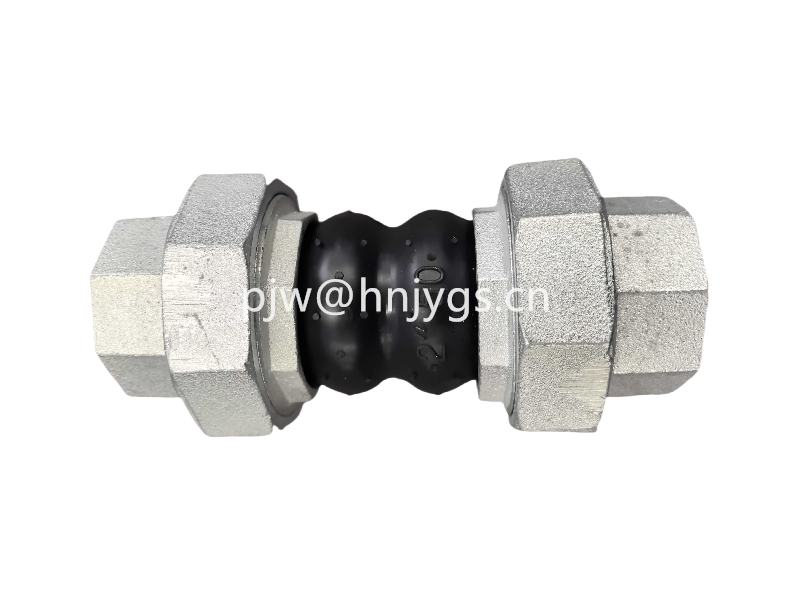

The threaded rubber expansion joint is a telescopic element located in the rubber expansion joint group.

This type of expansion joint is mainly preferred in pumps, fans, coolers, air compressors, refrigerators,

Steel industry, shipyard and chemical applications, can be used between -10 and +90°C.

Introduction to threaded rubber joints:

The threaded rubber joint is a derivative of the flange rubber joint;

Maximum diameter DN80, working pressure 1.6MPa,

The experimental pressure is 4.0MPa and the bursting pressure is 6.5MPa

This product is made of nylon curtain fabric as the base material and reinforced with rubber products.

It has high pressure resistance, good elasticity, large deflection displacement,

Aging resistance, shock absorption, noise reduction.

The thread material of the threaded rubber joint is forged/cast (round or square);

Surface treatment is galvanized; Threaded rubber joint is mainly used in hotel and hotel room air conditioning fan coil import;

The connection of the outlet pipe is simple and the installation is quick.

Its function is to compensate the axial displacement, radial displacement and angular displacement of the pipeline.
