China,EPDM,NBR,PTFE,Flexible rubber Hose ,high strength synthetic rubber, resistant to Oil. ,Hose: high strength synthetic rubber, resistant to Oil.
Gasoline, Weather and Abrasion.Length: 1000mm , Flange Material: A182 F304/F304L

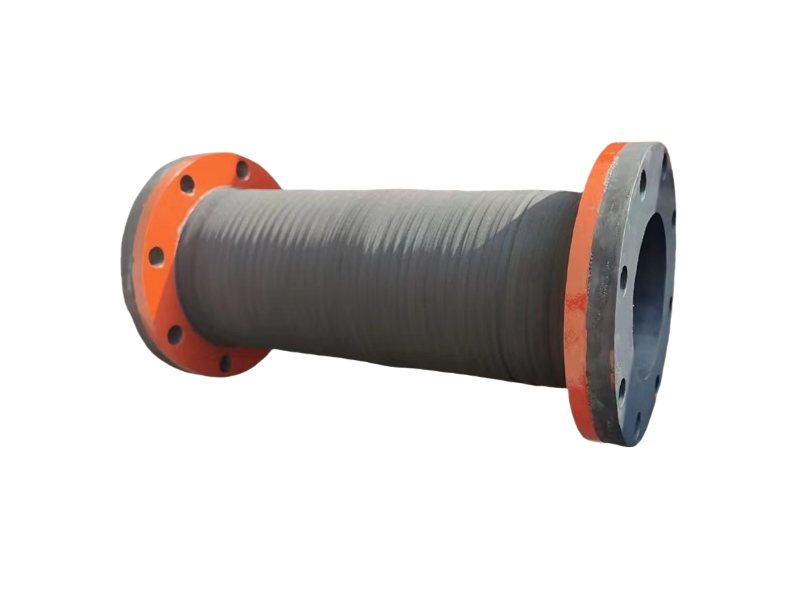

Flexible Hose:
1. Design Code: EI 1584 / JIG 2 / ASME B31.3 / B16.5; Straight Pattern
2. Connection: Flanged ends, RF #150, ASME B16,5
3. Flange Material: A182 F304/F304L
4. Hose: high strength synthetic rubber, resistant to Oil. Gasoline, Weather and Abrasion.
5. Length: 1000mm (TBA)
6. Max. lateral offset motion: VTA
7. Bolting: A193 - B8 / A194 - 8
8. Gasket: Spiral wound, graphite filler, 4.5 mm thickness SS304/304L winding, SS inner/SS outer ring
9. Service: Jet A1
10 Flow rate: TBA m3/h
EPDM,NBR,PTFE, Flexible rubber Hose
