Threaded Rubber Expansion Joint-KKD 3/4″
MME64100020 HLS-KKD THREADED RUBB.EXP.JNT. - 3/4"
MME64100040 HLS-KKD THREADED RUBB.EXP.JNT. - 11/2"
MME64100050 HLS-KKD THREADED RUBB.EXP.JNT. - 2"
The gear rubber expansion joint is an expansion element located within the rubber expansion joint group .
This type of expansion joint, which is mainly preferred in pumps, fans, coolers, air compressors, refrigerators,
iron and steel industry, shipyards and chemical applications, can be used between -10 and +90°C.
Introduction to threaded rubber joints:
The threaded rubber joint is a derivative of the flange rubber joint,
Maximum diameter DN80, bearing capacity 1.6MPa.
This product is made of nylon curtain fabric reinforced with rubber products.
It has the characteristics of high pressure resistance, good elasticity, large deflection displacement,
aging resistance, shock absorption and noise reduction.
The thread material of the threaded rubber joint is forged/cast (round or square),
Surface treatment is galvanized; The threaded rubber joint is mainly used in hotel and hotel room air conditioning fan coil inlet,
The connection of the outlet pipe is simple and fast to install.
Its function is to compensate the axial displacement, radial displacement and angular displacement of the pipeline.
The threaded rubber header can be divided into two types:
1. Threaded rubber header;
Fan coil thread rubber fitting

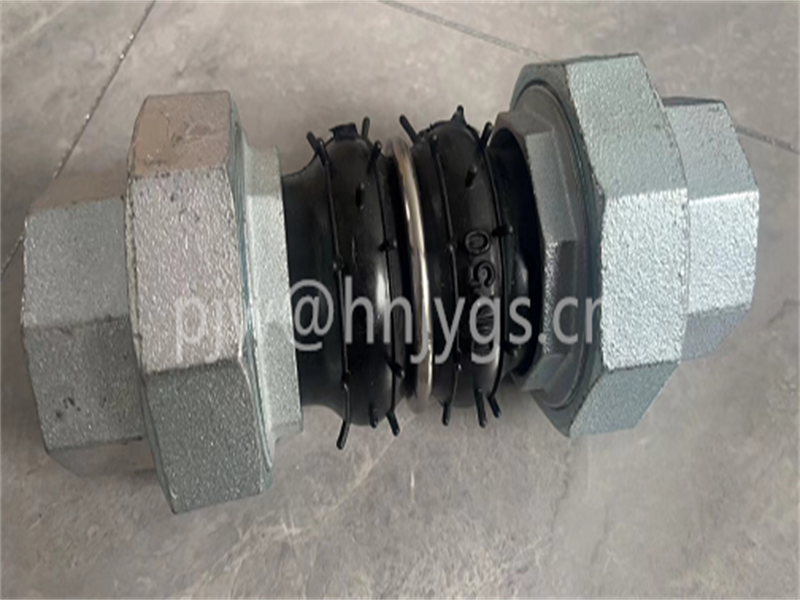

2. Double ball thread rubber connector

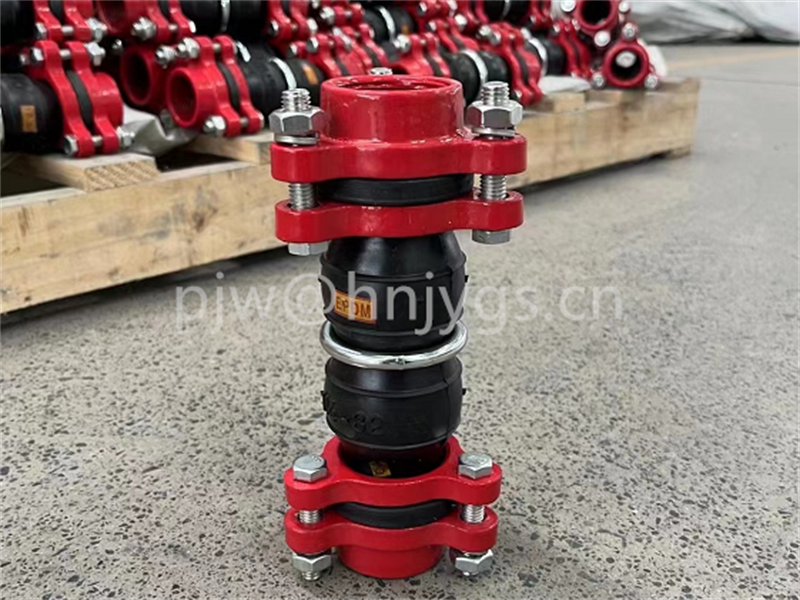

Thread rubber joint can be divided into: round thread rubber joint; Rubber joint with square thread
The threaded rubber joint has the following advantages:
1. Small size, light weight, good flexibility, easy installation and maintenance.
2. During the installation process, lateral, axial and angular displacement can be generated.
It is not limited by the pipe is not centered or the flange is not parallel.
3. It can reduce the structure transmission noise and has strong vibration absorption ability when working.
4. Effective prevention of corrosive media against high temperature, acid and alkali resistance,
Resist the corrosion of the inner wall of the rubber flexible joint in the oil pipeline, thereby improving its service life.
Threaded rubber connector due to its excellent comprehensive performance,
Widely used in chemical industry, construction, water supply and drainage, petroleum, light industry,
Refrigeration, sanitation, plumbing, fire, power and other basic projects.
