Fabric pipe expansion joints

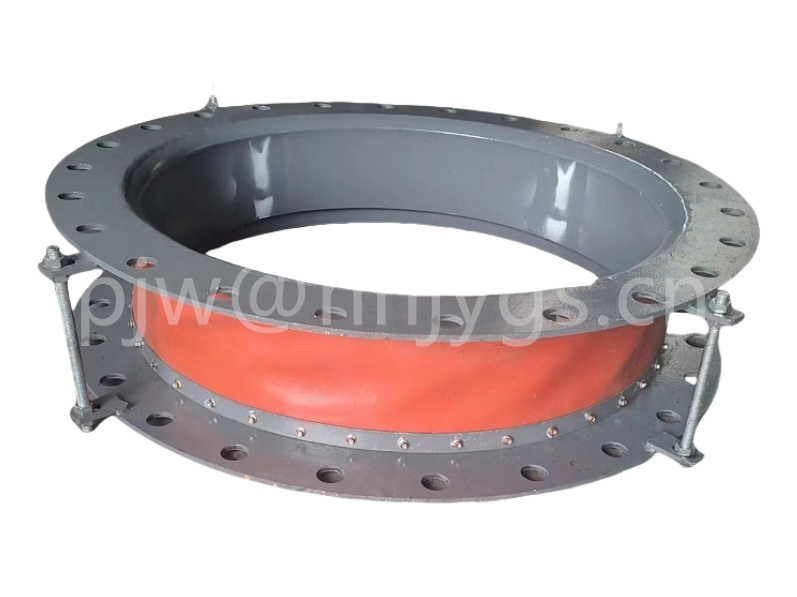

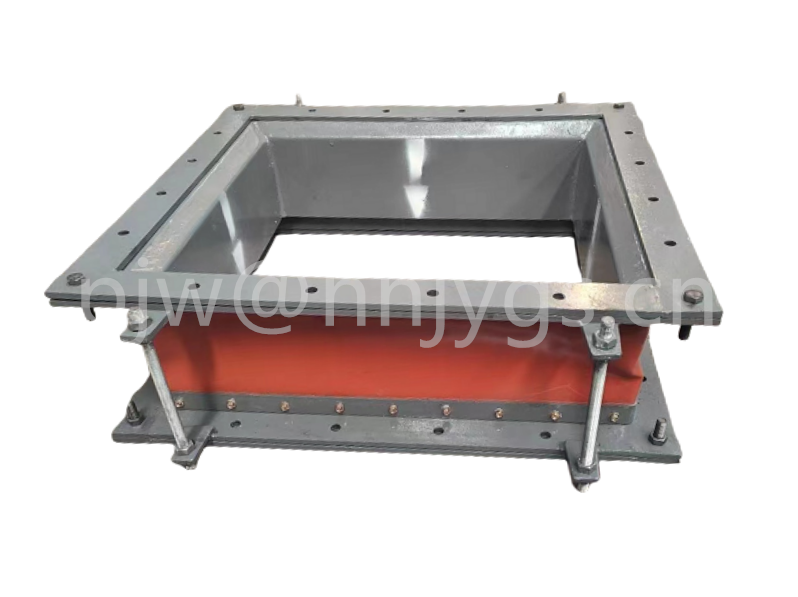

Fabric tube expansion joints Round, rectangular,Rectangular, round, fabric pipe expansion joint, Material: silicone rubber laminated glass cloth,

fluoroelastomer coated glass cloth,PTFE laminated glass cloth, EPDM coated glass cloth, butadiene rubber coated glass cloth,

PTFE film and other single layer or Multi-layer composite materials, ceramic fiber fireproof cloth, aluminum silicate cotton,

stainless steel wire fiber cloth, glass fiber cloth, etc.

Performance characteristics of non-metallic compensator (non-metallic expansion joint):

    The non-metallic compensator is mainly composed of flexible compensators (non-metallic materials),

connecting parts at both ends (flanges or end pipes), adjusting parts (threaded tie rods) and thermal insulation materials.

It is mainly used to compensate for the displacement caused by temperature changes, mechanical vibration and foundation

sinking of the pipeline system for transporting dust, gas, flue gas, coal gas and other gases.

 • Compensate for Thermal Expansion: Non-metallic compensators (non-metallic expansion joints) can provide large

 multi-dimensional directional compensation in a smaller size range.

• Compensate for installation errors: Since systematic errors are inevitable in pipeline connections, non-metallic

compensators (non-metallic expansion joints) can better eliminate installation errors.

• Noise and vibration isolation: Fiber fabrics and insulation cotton have the functions of sound absorption and vibration isolation,

 which can effectively reduce the noise and vibration of boilers, fans and other systems.

• No thrust reverse: Since the main material is a fibrous fabric, it is not capable of transmission. The design can be

simplified with non-metallic expansion joints.

Note: Drawings can be customized
